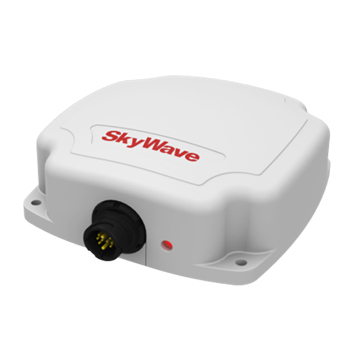

IsatData Pro IDP-680 - 2way Satellite Land Terminal

SW-ISAT-IDP680





Usage:
Terrestre
Tjänster:
Data
SMS
E-mail

Pris: 769,82 EUR +MOMS

The IDP680 IsatData Pro modem is designed to work on Inmarsat's global satellite constellation, providing for 2-way text and data communications with your assets.
 Whether used for managing trucks, fishing vessels or oil & gas equipment, the IDP680 IsatData Pro modem increases business efficiency, lowers operation costs and enables compliance with government regulations. Applications include transferring electronic documents and vehicle telemetry information, text- messaging remote workers and maintaining up-to- date driver logs and many more.

The IsatData Pro service is designed for mission- critical applications. All messages are delivered within seconds, making IsatData Pro ideal for sending information to people operating in high-risk areas, reporting alarm conditions and retrieving logs from remote equipment during an emergency.

Inmarsat IsatData Pro network allows download of near real-time messages of up to 10,000 bytes to any device, and upload up to 6,400 bytes from the device. This increase in data packet size and transmission speed meets customer demands for higher data capacity and reduced latency in machine-to-machine (M2M) solutions.

APPLICATIONS

  • Send electronic documents including logistics
  • forms and billing signatures
  • Text-message drivers and remote workers
  • Collect and send logs required to meet
  • transportation and government regulations
  • Collect and transmit telemetry information from
  • vehicles and heavy equipment
  • Download report logs from environmental data
  • logging equipment
  • Send pressure, volume and other sensor
  • information from remote well sites
  • Aggregate, monitor and communicate information
  • from smart grid sensors in near real-time
I paketet ingår:
IsatData Pro IDP-680 - 2way Satellite Land Terminal
Pris: 769,82 EUR +MOMS
EUR 923.78 (VAT included)
(USD 810.00)

* DU BÖR FRÅGA EFTER EN OFFERT när du behöver köpa särskilda tillbehör, till exempel en antenn och en kabel så att vi kan ge dig den rätta kabeln för att ansluta antennen till enheten med alla adaptrar som du kan behöva.


Funktioner:
  • Integrated GPS for location-based services
  • Environmentally-sealed enclosure for outdoor
  • installations
  • Low-power modes for battery-powered
  • applications
  • Peripheral interfaces for connecting to analog,
  • digital and serial devices
  • Serial interfaces for connectivity to RS485/J1708
  • and Modbus interfaces
  • Programming capability and user tools for quick
  • customization to meet business needs
Specifikationer:
  1. SATELLITE COMMUNICATION
    - Satellite service: Two-way, Global, IsatData Pro
    - From-mobile message: 6,400 bytes
    - To-mobile message: 10,000 bytes
    - Typical latency: <15 sec, 100 bytes
    - Elevation angle: +20° to +90° (IDP-680); -15° to +90°
    - (IDP-690)
    - Frequency: Rx: 1525.0 to 1559.0 MHz;
    - Tx: 1626.5 to 1660.5 MHz
    - EIRP: <7.0 dBW (IDP-680); 5.0 dBW (IDP-690)
    GPS/GLONASS
    - Acquisition time: Hot: 1 second; Cold: 29/30 seconds
    - Accuracy: 2.5m/4.0m CEP-Horizontal
    - Sensitivity: Acquisition: -148 dBm (IDP-680);
    - 140dBm (IDP-690)/Tracking: -162 dBm (IDP-680);
    - 158dBm (IDP-690)
    CERTIFICATION
    - Regulatory: CE (R&TTE, RoHS 2), FCC, IC, Anatel compliant, MSS Russia, SRCC (IDP-690 only), RCM Mark, IEC 60945, C1D2
    - Others: Inmarsat Type Approval, IP67
    ELECTRICAL
    - Input voltage: 9 to 32V; Load dump protection: +150V; SAE J1455 (Sec. 4.13)
    - Power consumption: (Typical @12V DC, 22°C):
    - Average receive: 8.3 mA;
    - Receive with GPS/GLONASS: 40 mA; Transmit: 0.75 A;
    - Sleep: 100 μA
    EXTERNAL INTERFACES
    - Inputs/outputs: 4 x analog or digital in/out
    - Serial: 1 x RS-232; 1 x RS-485
    - Accessories: 1-Wire adapter via RS-232 port
    ENVIRONMENTAL
    - Operating temperature: -40°C to +85°C
    - Dust and water ingress: IP67
    - Vibration: SAE J1455 (Sec 4.9.4.2 fig 6-8);
    - MIL-STD-810G (Sec 514.6)
    - Shock: MIL-STD-810G (Sec 516.6)
    PROGRAMMING
    - Lua scripting engine with core services. SDK with GUI development tools available. Lua software application upgradable over the air (SOTA).
    - Core services: Geofence, data logger, position reporting
    - User data memory: 2MB for users services, data files, including data logger
    - Optional configurable device-level applications:
    - Analytics agent: notifications and reports for driver behavior and vehicle/asset performance.
    - AVL Agent: Facilitates integration of IDP terminals into fleet management solutions.
    - Garmin dispatch agent: Tracking, navigation, driver communication and dispatch using Garmin devices
Manufactor: Manufactor Website:

www.skywave.com

Samtalstidsplaner för Kontantkort:

We don't have any compatible Airtime Plan
