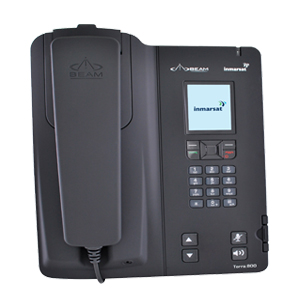

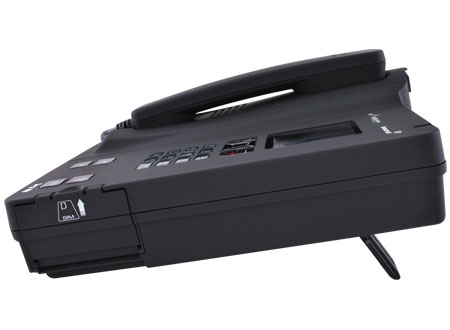

Beam Terra 800 Land Fixed Phone - TR800





Services:
Data

Prix: 1.968,88 EUR +TVA

Terra 800 is an all-in-one communications terminal, specifically designed to be utilized in a wide variety of land based applications; such as a dedicated telephone service or a back up emergency telephone system that can be deployed throughout the world. Featuring an intelligent RJ11/POTS interface to enable connection of up to 5 standard corded/cordless phones or integration to a PABX system, supporting cable runs of up to 600m (2000’) and presents standard ring, busy and dial tones. The Terra 800 has an integrated Bluetooth for voice communications, intuitive colour LCD display that provides easy and convenient access to send and receive SMS or to retrieve phone numbers stored in the terminal. Other key features include, a secondary SIM socket to override internal SIM, an active privacy handset, in-built handsfree speakerphone, USB data, inbuilt phone book, SMS, adjustable ring tones, desk or wall mountable. The Terra 800 is designed to operate with the Inmarsat “Link Phone” service and is supplied with a dedicated high quality directional/fixed antenna system to provide a completely integrated solution that is ready for use anytime.

Included in the Package:
  • Terra 800 Terminal
  • ISD700 Directional/Fixed Antenna (Passive)
  • Privacy Handset
  • 110-240V AC Plug Pack 15v DC Out
  • 10-32V DC Power Cable
  • 1 x Spring cup (attached to terminal)
  • 1 x Springless cup
  • USB Cable
  • 2m Alert wiring loop
  • Wall mounting plate
  • User Manual
  • Quick Start Guide

Prix: 1.968,88 EUR +TVA
EUR 2362.66 (VAT included)
(USD 2050.00)

*Vous devriez demander UN DEVIS lorsque vous avez besoin d'acheter des accessoires spécifiques: par exemple une antenne et le câble afin que nous puissions vous donner le bon câble pour connecter votre antenne à votre appareil avec tous les adaptateurs que vous pourriez avoir besoin.


Caractéristiques:
Design
  • Integrated antenna connections
  • SIM socket rear of terminal

Power
  • 10 – 32V DC Input
  • 110/240V AC Plug pack (included)

INTELLIGENT POTS / RJ11 INTERFACE
  • Support up to 600m (2000’) of RJ11 cable runs
  • Standard Dial, ring & busy tones
  • Integrates easily to PABX System
  • Support standard corded, cordless and DECT phones
  •  Auto-dial & speed dials available

VOICE CALLING FEATURES
  • Integrated easy to use phone book
  • Privacy handset calling
  • Inbuilt handsfree speakerphone
  • Access from PBX or other corded / cordless handsets
  • Bluetooth headsets (not included)

OTHER KEY FEATURES
  • High quality IP54 rated enclosure
  • Colour LCD Screen
  • Compact all in one design
  • Wall or desk mounting options
  • Locking bolt to wall mounting
  • Accessible control buttons
  • Slimline privacy handset
  • In-built speakerphone
  • Cable routing LHS/TOP/BOTTOM
  • Dual SIM card enclosures
  • 12 month warranty
Specifications:
Power Specifications Average Power Consumption (Passive Antenna Connected) Standby Transmit Sleep Mode Peak Current Current @ 15V DC 0.17A 0.29A 4mA 0.56A Power 2.5W 4.4W 60mW 8.4W Physical Specifications Dimensions Weight TC400 only Total Kit Weight 240 x 190 x 53 (mm) 0.58kg TBD 8.0 x 7.5 x 2.1 (inches) 1.28lbs TBD Environment Specifications Operating Range Storage Humidity Degrees °C -20°C to +55°C -30°C to +80°C TBD Degrees °F -4°F to +131°F -22°F to +176°F Transceiver Inmarsat-4 Satellite GMR-2+ Frequency Bands Tx Operating Frequency Rx Operating Frequency RF Output Impedance Carrier frequencies TX Modulation RX Modulation 1626.5 - 1660.5 MHz 1518 ? 1565 MHz (Inmarsat) 1565.19 ? 585.65 MHz (GPS) 50 Ohms Channel 0 = 1626.525 MHz Channel 169 = 1660.475 MHz GMSK OQPSK Connectors / Interfaces POTS/RJ11 Antenna GPS Antenna 10-32V DC Configuration /Data RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance TNC-Female SMA-Female 4-way microFit (AC/DC adaptor, or DC lead) USB Mini B Certifications Inmarsat Type Approval FCC CE Compliance Electrical Safety RoHS Industry Canada C-Tick IP53 Rating 5 = Protected against dust limited ingress (no harmful deposits). 3 = Protected against direct sprays of water up to 60° from the vertical.
Manufactor: BEAM Manufactor Website:

www.beamcommunications.com
Nessun Risultato Trovato

DESCRIPTION TYPE
Brochure Terra 800 Brochure Download
BEAM Oceana Terra Comparison Chart Comparison Chart Download
DESCRIPTION TYPE
BEAM FALCON - Software ver. 1.5 Software and Firmware Upgrade Combined Tool Download
BEAM FALCON - Software ver. 1.4 Software and Firmware Upgrade Combined Tool Download
DESCRIPTION TYPE
BEAM FALCON - Software ver. 1.5 Software and Firmware Upgrade Combined Tool Download
BEAM FALCON - Software ver. 1.4 Software and Firmware Upgrade Combined Tool Download
BEAM FALCON - Firmware Upgrade Instructions for OCEANA/TERRA/ISATPHONE PRO Firmware Download
TITLE SUMMARY RISOLUTION
Can i use data with my Oceana and Terra Units? Read Full Article
How do i upgrade the firmware on my IsatDock or Oceana or Terra terminals? Read Full Article
